Wiring, Hydraulic, and Pneumatic Flow diagrams have a broad range of definitions. Flow diagrams are used for multiple types of publications in hard copy or electronic format. They are essential for troubleshooting and repair procedures, training materials, electronic data gathering, etc.

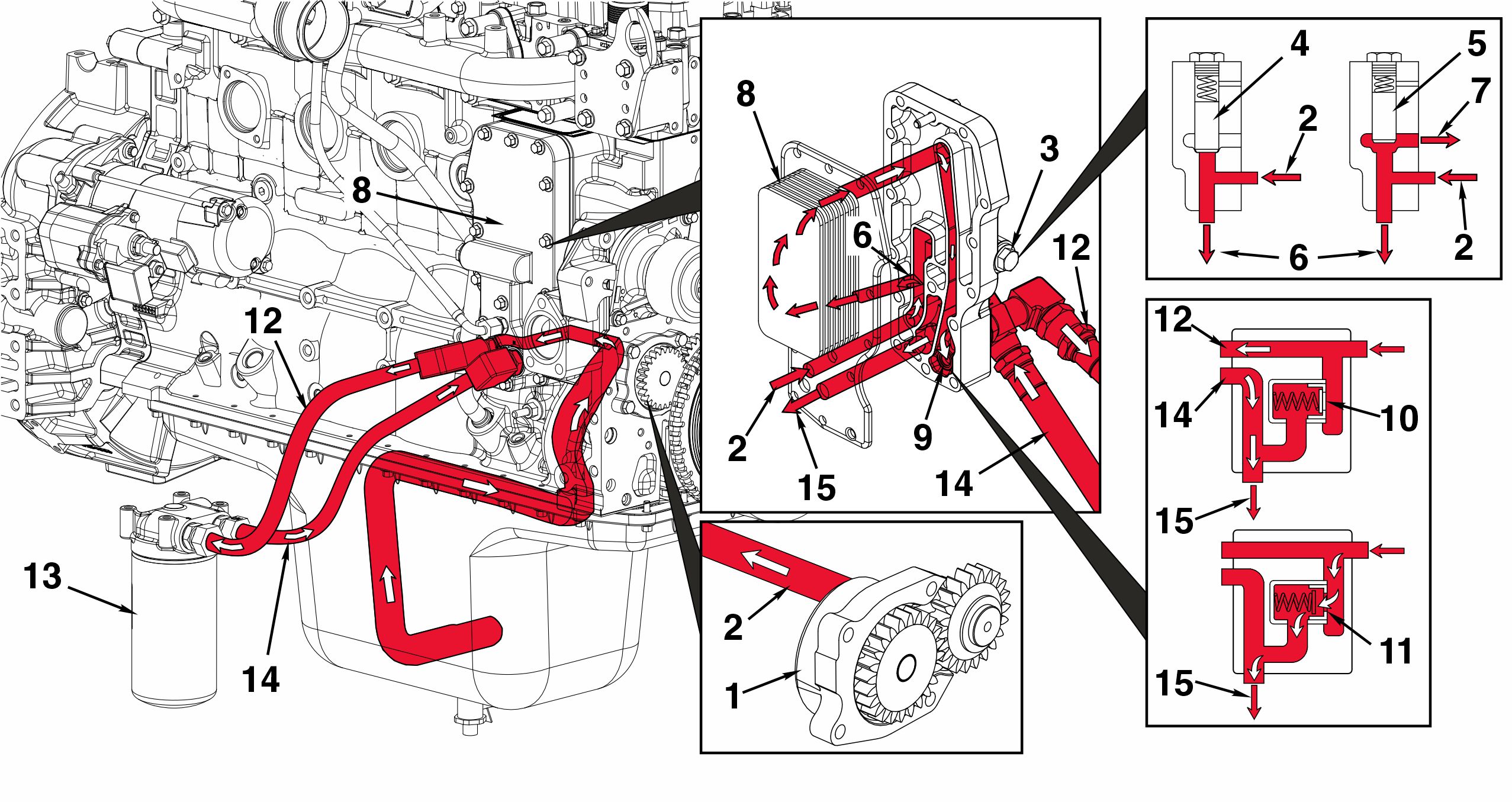

Flow diagrams give the viewer information about where and how fluids flow through a system. For instance, how current travels from the source to the component and back and how data is developed from beginning to end.
Flow diagram services can create many diagrams, including flowcharts, process flow diagrams, and data flow diagrams. These services typically provide a user-friendly interface and a library of pre-built symbols and shapes to make creating diagrams easy and efficient. They can also include collaboration, version control, and integration with other tools.
Primarily though flow diagrams show the path through components that fluids flow, like coolant through a component, lubrication flow through a component, fuel flow through components, etc.
It doesn’t have to be just liquids, either. Flow diagrams can be used for electrical currents, airflow, and chemical flow as it changes state in refrigeration, for instance, etc. Flow diagrams are good tools for training purposes, showing source locations where things can be measured or adjusted, troubleshooting problems, etc.
Moreover, flow diagrams can be color coded to show different types of objects like the liquid, voltage, material flow, the location of flow at certain states, people flow, etc.
Furthermore, flow diagrams are used in the aerospace, agricultural, automotive, electric vehicle, marine, HVAC, and medical industries. With the use of smart graphics, flow diagrams are more useful.
Tell us about your flow diagrams project. Let our team create flow diagrams for your products, business, or organization.
