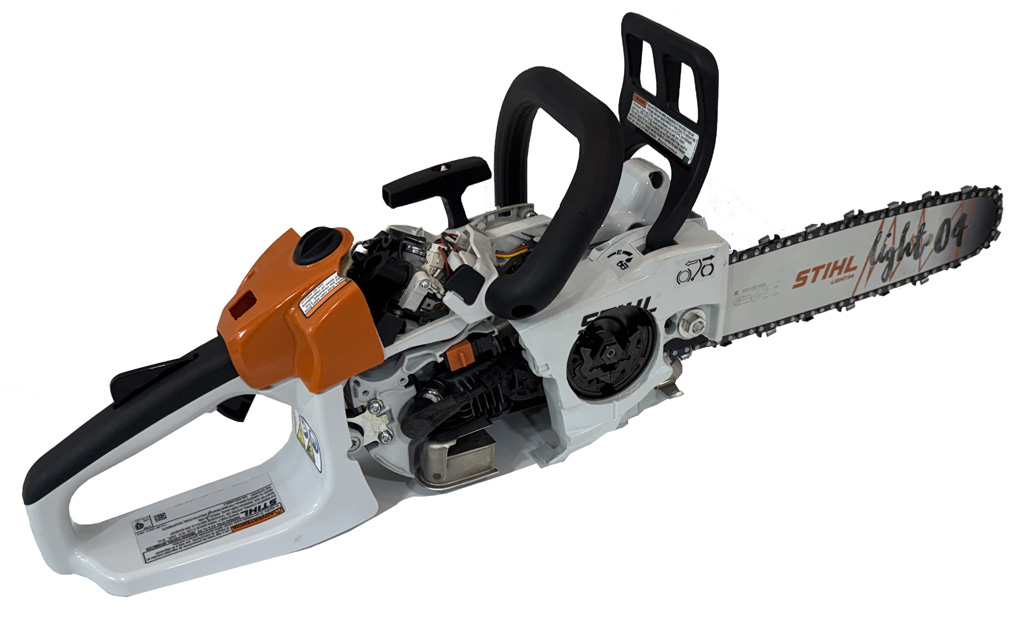

A Stihl chainsaw cutaway removes sections of a genuine saw’s housing and internals so everyone can see how the machine works. Built from authentic OEM hardware, it gives engineers, dealers and trade-show visitors a clear view of a high-RPM two-stroke engine without a teardown.
Why Physical Cutaways Outperform 3D CAD Models for Chainsaws
Digital renderings and 3D CAD models have their place, but they cannot match the stopping power of a real, physical Stihl chainsaw cutaway on a crowded trade show floor. Visitors can walk up and look straight into the combustion chamber of a two-stroke engine, and a screen cannot replicate that. The tactile engagement keeps people at the booth. They want to touch the machined surfaces, trace the fuel-air mixture’s path, and turn the crankshaft to watch the piston move.
Mechanical transparency builds instant trust with engineers, dealers and end-users alike. Cutaways also show the product as it really is, with every genuine part and component displayed together and its function made clear. TECHCOM builds these displays to bridge complex engineering and visual impact, so your sales team has a concrete tool for explaining inner workings without leaning on digital animations.
Engineering Precision of Stihl Light Chainsaw Cutaways
Static pictures don’t show how a tool works. For Stihl light chainsaw cutaways, we strip away the polymer housing to expose the core engineering. Every gear, piston and clutch drum is exposed, so your audience can follow the flow of power from the pull start to the drive link.
A functional chainsaw cutaway for trade shows takes serious mechanical patience. We machine away exact sections of the magnesium crankcase and cylinder walls without compromising structural integrity. Viewers can then trace the ignition timing, the fuel scavenging paths and the centrifugal clutch engagement in real time. A standard piece of power equipment becomes an interactive engineering lesson.
Key Engine Components Highlighted in Chainsaw Cutaways
- Piston and Piston Rings: Sectioned down the middle to reveal crown design, ring lands, and how compression is maintained against the cylinder wall.
- Cylinder Transfer Ports: Precision-milled windows showing the exact angle and path of the fuel-air charge rushing into the combustion chamber.
- Crankshaft and Connecting Rod: Exposed counterweights and needle bearings demonstrating the conversion of linear force into rotational energy.
- Ignition Module and Flywheel: Clear views of the magneto timing setup that generates the spark at high RPMs.
- Centrifugal Clutch Assembly: Cutaway views of the clutch shoes and springs demonstrating engagement under centrifugal force.
The fuel system and carburetor are opened up as well, so viewers can see the role each plays in the saw’s operation.
Stihl Chainsaw Cutaway FAQ
What is a Stihl chainsaw cutaway display?
It is a modified model of a genuine chainsaw, not a running saw, with sections of the exterior housing and internal components milled away to reveal the inner mechanics. We build these custom units to help dealers, educators and manufacturers demonstrate tool operation clearly.
How are Stihl equipment cutaway exhibits made?
We use high-precision CNC machining and manual milling on authentic OEM hardware. We cut away portions of the cylinder, crankcase and handle assemblies to expose internal parts, and we keep the display stable and safe to handle.
Can I order a custom chainsaw cutaway display for a specific model?
Yes. We build custom chainsaw cutaways for specific Stihl light chainsaw platforms based on your exhibition needs. You give us the model number, and we engineer the display to highlight the internal features you want to showcase.
How long does it take to manufacture a custom chainsaw engine cutaway?
Most custom small engine cutaways need four to eight weeks of lead time. The exact time depends on the complexity of the housing and on whether you supply the donor unit.
What materials are used to ensure trade show durability?
We use precision CNC techniques to machine away non-structural aluminum and plastic casings. We then reinforce internal stress points and finish exposed metal with protective coatings, so the display withstands heavy handling by booth visitors.
Can the crankshaft and piston still move in the finished display?
Yes. We engineer our two-stroke engine cutaway exhibits so visitors can turn the system by hand and watch the piston, rings and port timing work in real time.
Are these displays suitable for permanent showroom use as well as trade shows?
Yes. Our cutaways are rugged enough for the transit abuse of the trade show circuit, so they are equally durable in corporate lobbies or dealer training centers.
