Building a precision engine cutaway model requires an exact translation of complex mechanical engineering into a transparent educational format. At Techcom Inc, our process starts by reviewing original manufacturer CAD data to determine structural clearance limits before any physical machining begins. CNC milling and wire EDM techniques selectively remove housing material from the engine block, cylinder head, and oil pan, exposing critical internal mechanics without compromising the structural integrity of the assembly.

Technicians deburr every edge, polish internal oil galleries, and apply contrasting industrial coatings to differentiate between cooling jackets, lubrication channels, and combustion chambers. For functional units, we integrate variable-speed electric drives and custom gearboxes to rotate the crankshaft at safe viewing speeds, allowing observers to track the precise synchronization of pistons, valves, and camshafts. This meticulous integration of digital modeling and hands-on fabrication ensures every engine demonstrator delivers uncompromising visual clarity and mechanical accuracy.

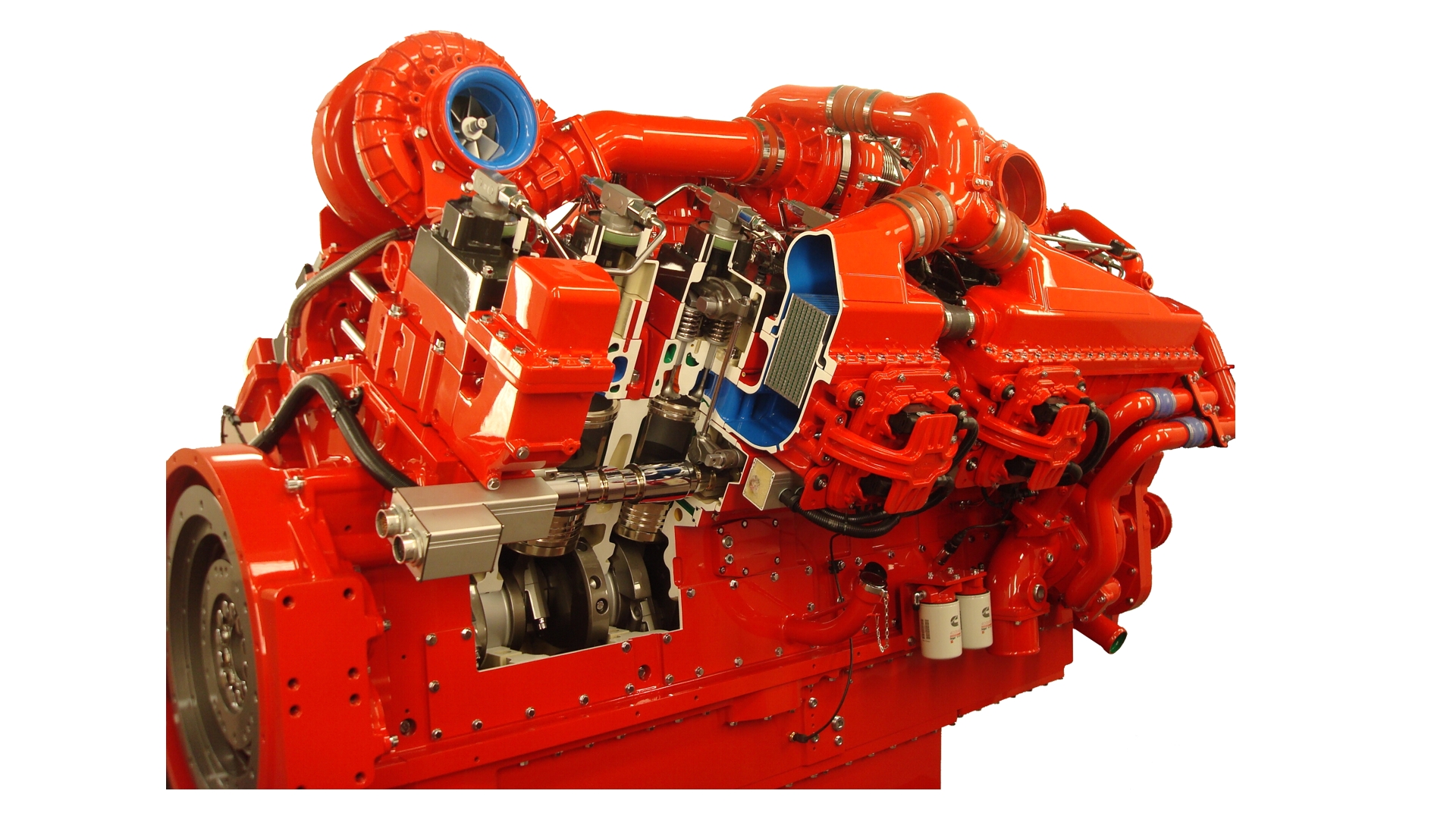

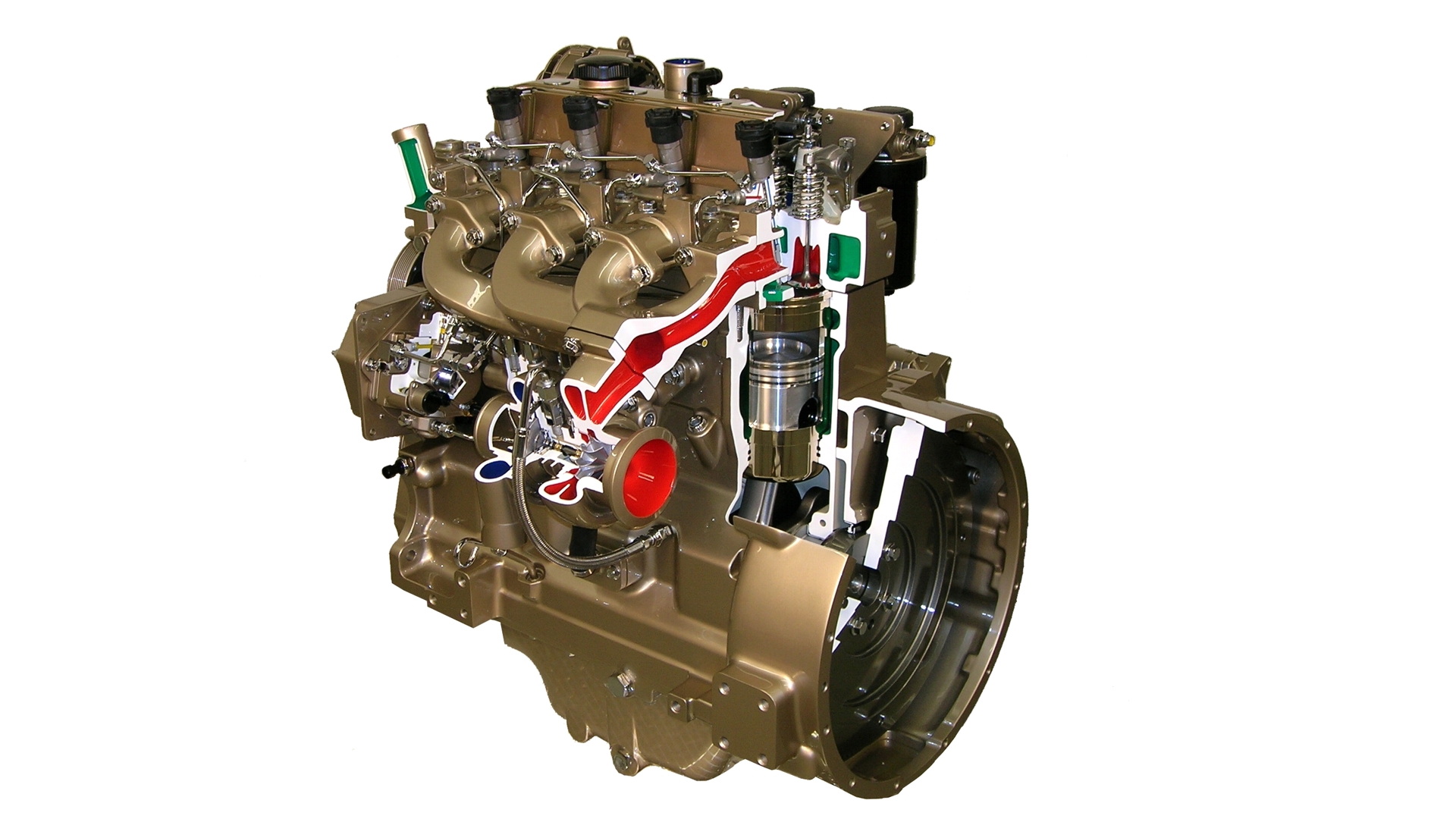

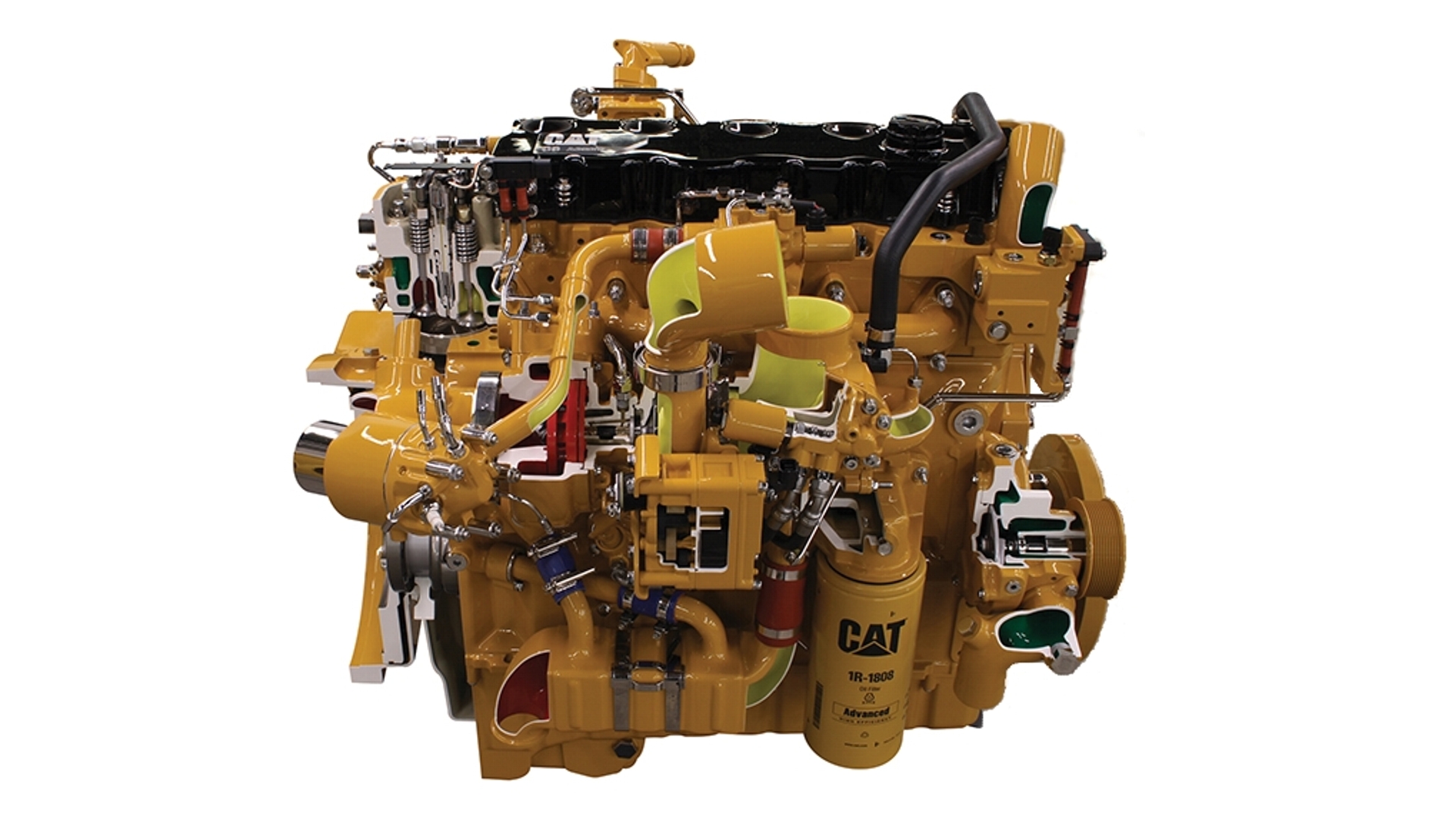

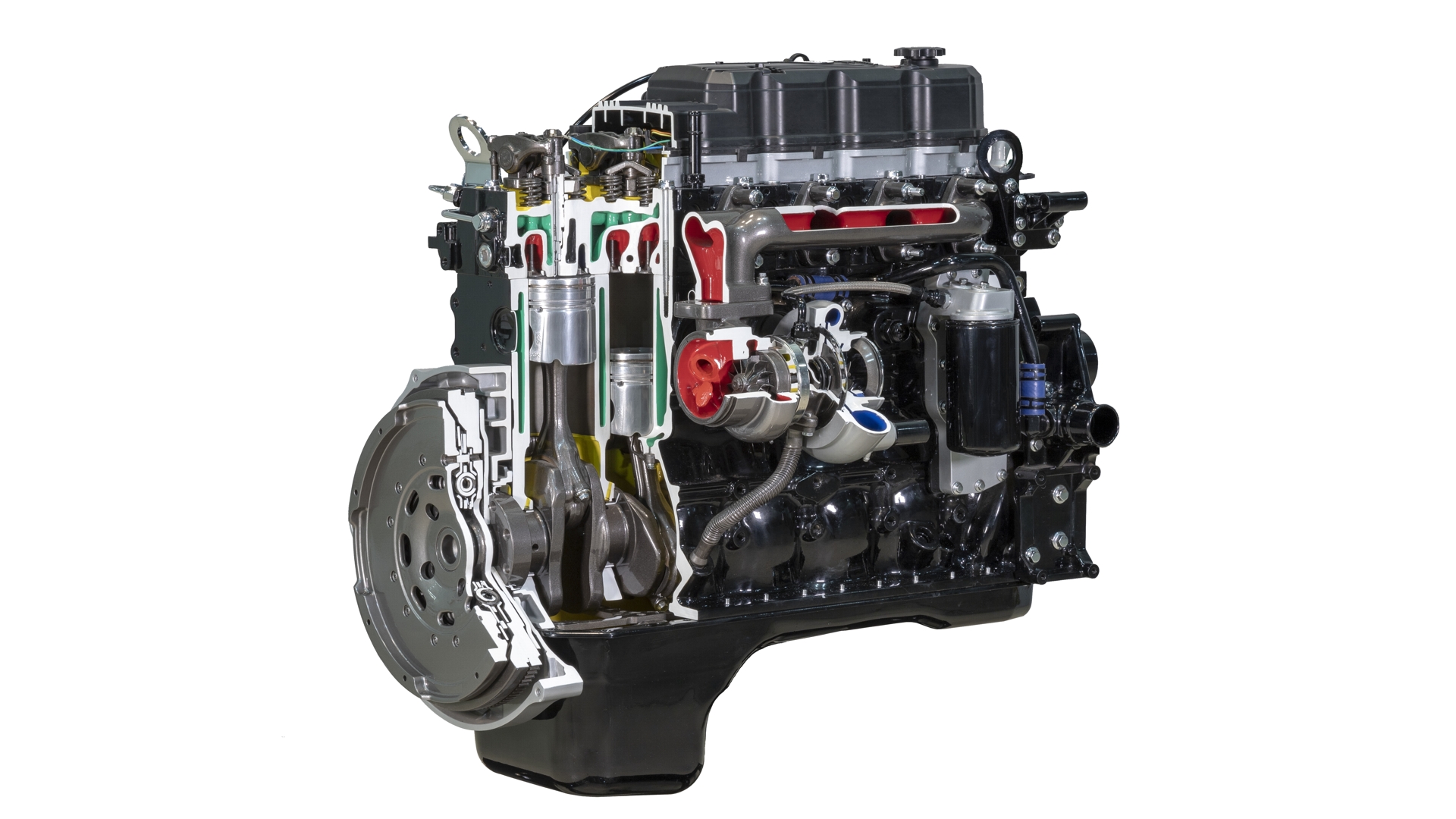

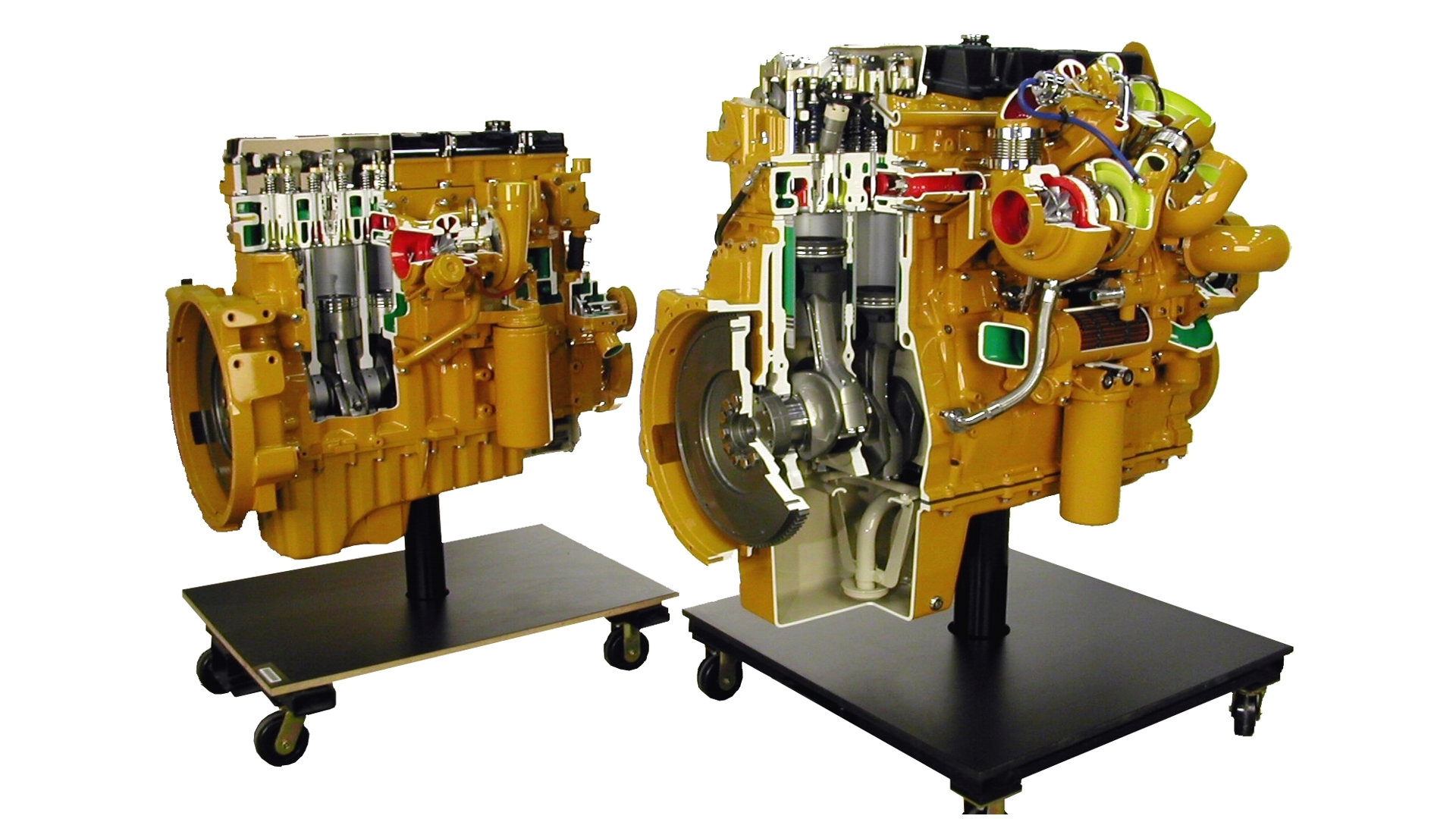

Engine cutaways, in the industrial sense, refer to the display of an engine and engine products, where a portion or all internal components are visible. For instance, these internal engine components include pistons, bearings, and seals, and their relationship to the product’s functionality.

Cutaways are product training aids. Other uses include trade show displays, museum displays, and numerous additional applications. Moreover, TECHCOM also creates Working Modules. Cutaways can be produced using a variety of methods by the manufacturer; however, the best method is to use a cutaway service company, such as TECHCOM, to ensure a quality product.

As 3D modeling and CAD (Computer-Aided Design) software continue to advance with new features and advantages, cutaways will still effectively display products in their real-world form, utilizing actual parts and components to demonstrate their connections and functionality.

Tell us about your project. Let our team create your next Engine Cutaway Model, Engine Training Aids, Engine Demonstrator, or Engine Cutaway Display for auto shows, tradeshows, lobby display, or classroom training.

What are the primary applications for professional engine cutaways?

Professional engine cutaways are primarily utilized in technical vocational schools, corporate engineering R&D facilities, and high-stakes trade show exhibitions. Educational institutions deploy these models to teach internal combustion theory, diagnostic procedures, and assembly mechanics directly in the classroom. Meanwhile, heavy-duty manufacturers and Tier-1 automotive suppliers rely on custom engine cutaway displays at global industry trade shows to instantly communicate proprietary design advantages, material innovations, and internal efficiencies to prospective enterprise clients.

Key components highlighted in industrial engine cutaway displays

1. Pistons and Connecting Rods: Sectioned to reveal internal wrist pins, oil control rings, and skirt clearance profiles during the compression stroke.
2. Valves and Valvetrain: Cutaway views of intake and exhaust valves, springs, and rocker arms demonstrating precise timing and lift mechanics.
3. Crankshaft and Main Bearings: Exposed journal surfaces and bearing inserts illustrating oil film distribution and rotational balance.
4. Turbochargers and Superchargers: Precision-milled compressor and turbine housings showing airflow dynamics and wastegate actuation.
5. Gaskets and Sealing Surfaces: Multi-layer steel head gaskets and dynamic seals displayed in situ to explain fluid containment under extreme pressure.

How do working engine modules improve classroom training and trade show engagement?

Working engine modules improve training and engagement by replacing static 2D diagrams with dynamic, tactile visualization that instantly clarifies complex mechanical interactions. In educational settings, students can watch real-time valve actuation and piston movement to bridge the gap between textbook theory and practical maintenance. On the trade show floor, motorized engine training aids draw immediate foot traffic, giving sales and engineering teams a physical centerpiece to explain technical specifications to non-technical buyers.

Techcom Inc engineers precision engine cutaways, working engine modules, and custom engine training aids designed for technical education and industrial exhibits. Our custom engine cutaway display models combine meticulous CAD integration with expert machining to highlight internal mechanics with absolute clarity.
