Engineering Precision in Every Section

When you need to show engineers, buyers, or students how a heavy-duty drivetrain actually operates, standard photos just will not cut it. You need a physical display that lays the mechanics bare. At Techcom Inc, we build training tools that pull back the housing so your audience can see the real engineering at work. But getting a clean, millimeter-precise cut through hardened steel requires more than just firing up a plasma torch.

The Manufacturing Process of Custom Axle Cutaways

Building a top-tier cutaway starts with raw production units sourced straight from the assembly line. Our machinists fixture each unit on high-precision wire EDM machines and multi-axis CNC mills to slice through heavy-duty differential housings, hypoid gears, and drive shafts without warping the surrounding metal. We grind away specific windows in the casing, exposing the mesh of the ring and pinion, the spider gears inside the carrier case, and the axle shafts running out to the wheel ends. Every cut is deburred, polished, and treated with corrosion-resistant coatings so the internal components stay clean and operational for years on the trade show floor or in the corporate training lab.

What is the typical lead time for a custom axle cutaway display?

Most custom axle cutaway projects ship within six to eight weeks from the time we receive your supplied unit or finalize the hardware specs. Complex industrial axle displays or motorized models requiring custom framing and gear-reduction motors may add a couple of weeks to the schedule.

Can Techcom Inc build displays using our proprietary axle housings?

Yes, we routinely work with original equipment manufacturers to section their proprietary components under strict non-disclosure agreements. You can ship your units directly to our facility, and we will turn them into high-impact cutaways.

Are these cutaway displays durable enough for frequent trade show travel?

Our trade show axle cutaways are engineered specifically for the rigors of the road, featuring reinforced internal framing, locking casters, and heavy-duty flight cases designed to protect exposed gears and axle shafts during transit.

Do you offer motorized or backlit options for rear axle cutaway models?

We regularly integrate low-RPM gear motors so potential customers can watch the differential gears rotate in real time, along with strategic LED backlighting to highlight gear tooth contact patterns.

Key Internal Components Revealed in Axle Cutaways

• Differential Carrier Case: Sectioned to show the internal cage holding the spider and side gears that compensate for wheel speed differences during turns.
• Ring and Pinion Gear Set: Milled to reveal the precise tooth contact pattern, bevel angles, and hypoid offset that transfer rotational energy from the driveshaft.
• Axle Shafts and Splines: Precision-cut along the length to display diameter transitions, bearing journals, and the interface at the wheel hub.
• Bearings and Races: Sectioned tapered roller and ball bearings showing the rolling elements and load-bearing surfaces inside the axle tubes.
• Brake Assemblies: Cutaway views of disc calipers, rotors, or drum brake shoes mounted at the axle ends to show stopping mechanisms alongside the drive mechanics.

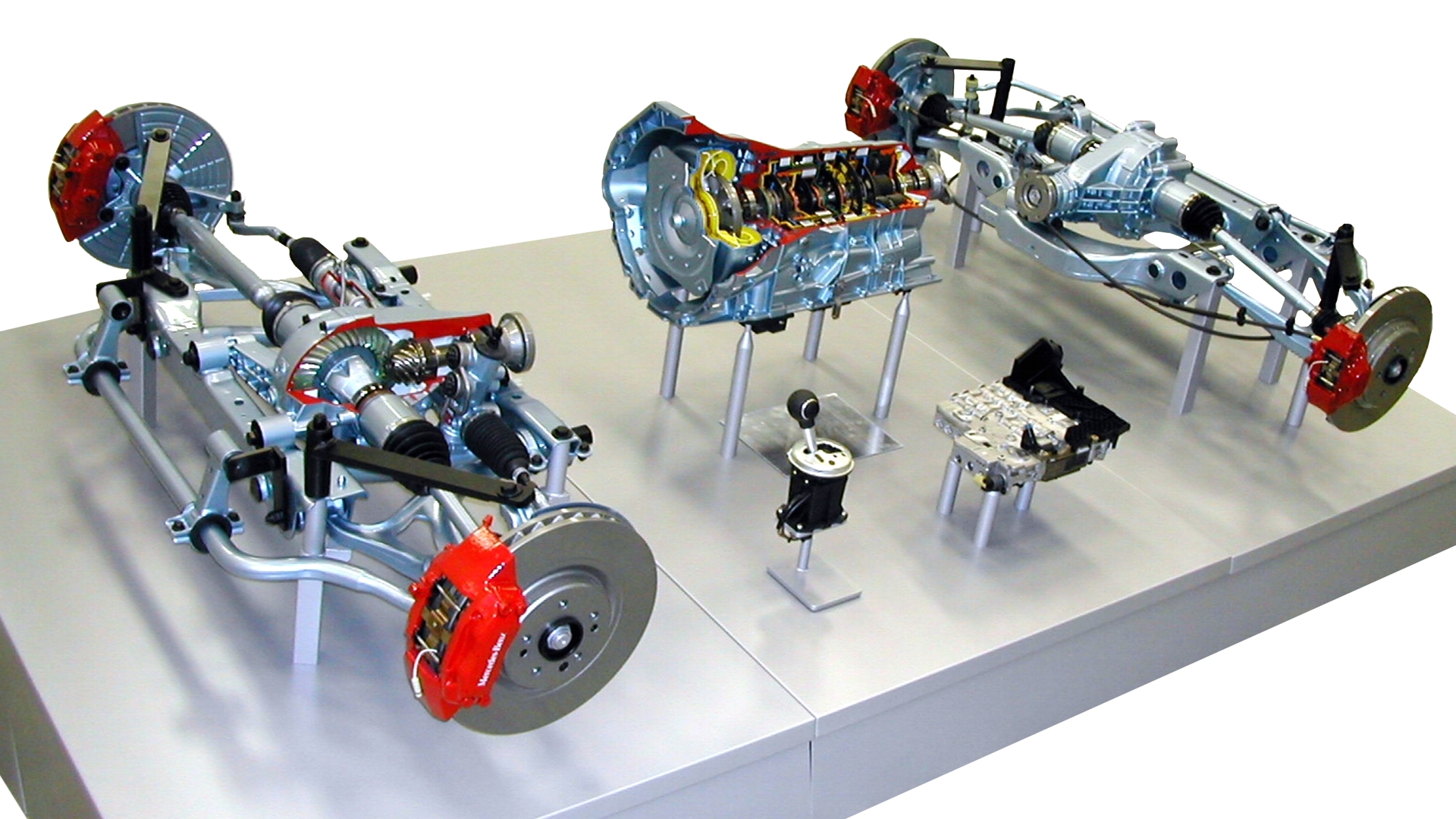

Techcom Inc specializes in building high-precision axle cutaway displays, transforming standard heavy-duty drivetrains into functional engineering models for trade shows, sales floors, and technical training facilities. From custom CV axle cutaways to complex automobile rear axle assembly cutaways, our sectioned displays give your audience an unfiltered look at internal gears, differentials, and shafts.
