The Engineering Precision Behind Custom Boat Cutaway Displays

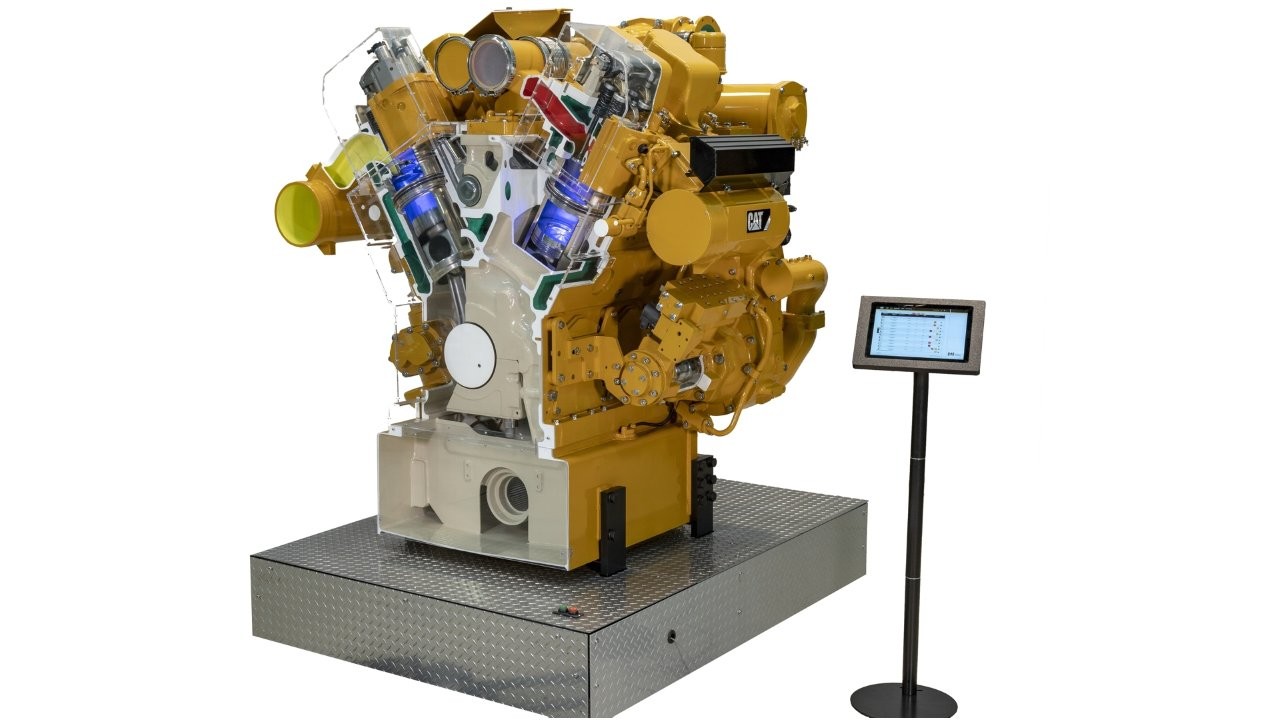

Building a top-tier marine engine cutaway takes a lot more than just grabbing a saw and hacking up a housing. At Techcom Inc, we start every project by reviewing native CAD data and 3D models provided by your engineering team. This lets us map out precise section lines that expose vital internal components—like pistons, camshafts, gearboxes, and cooling channels—without compromising the structural integrity of the casing.

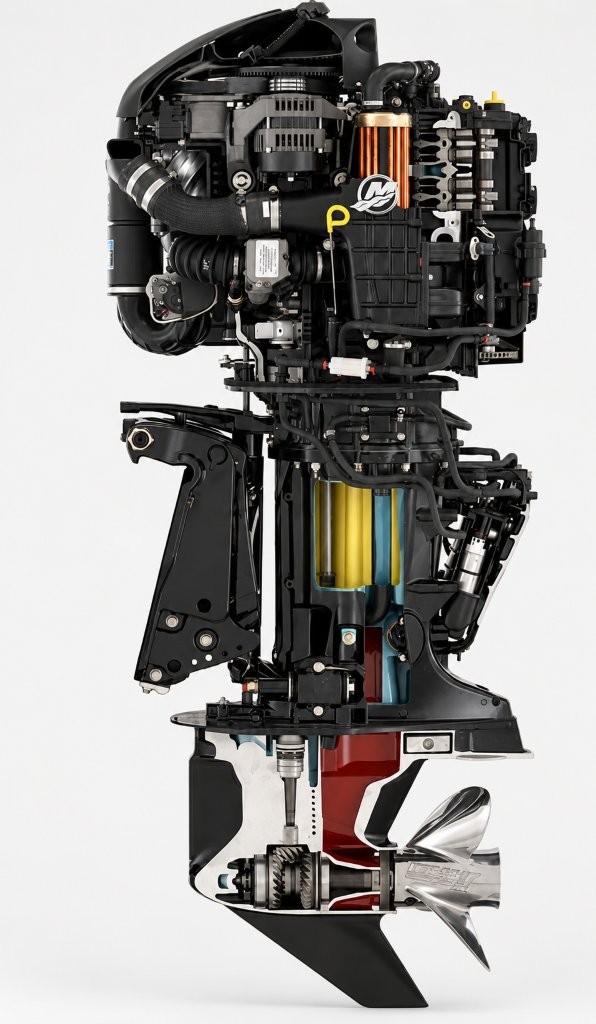

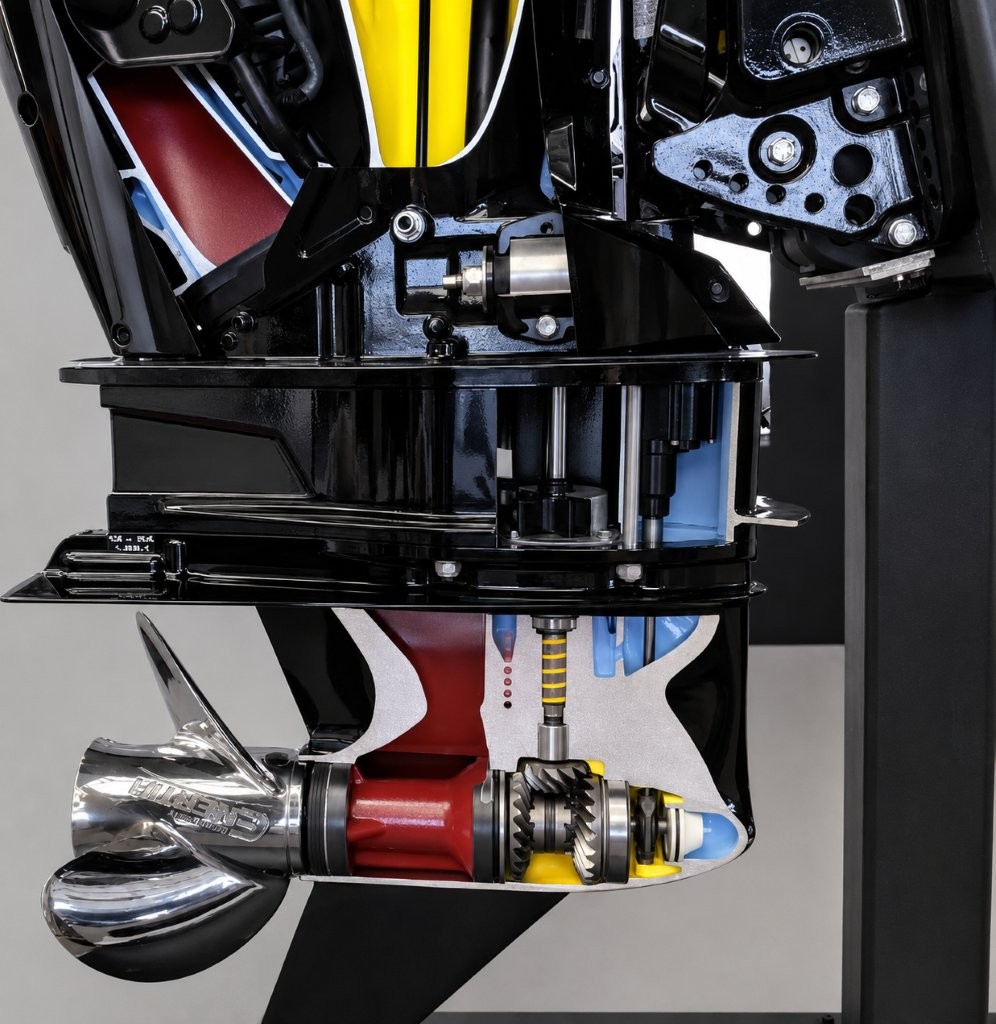

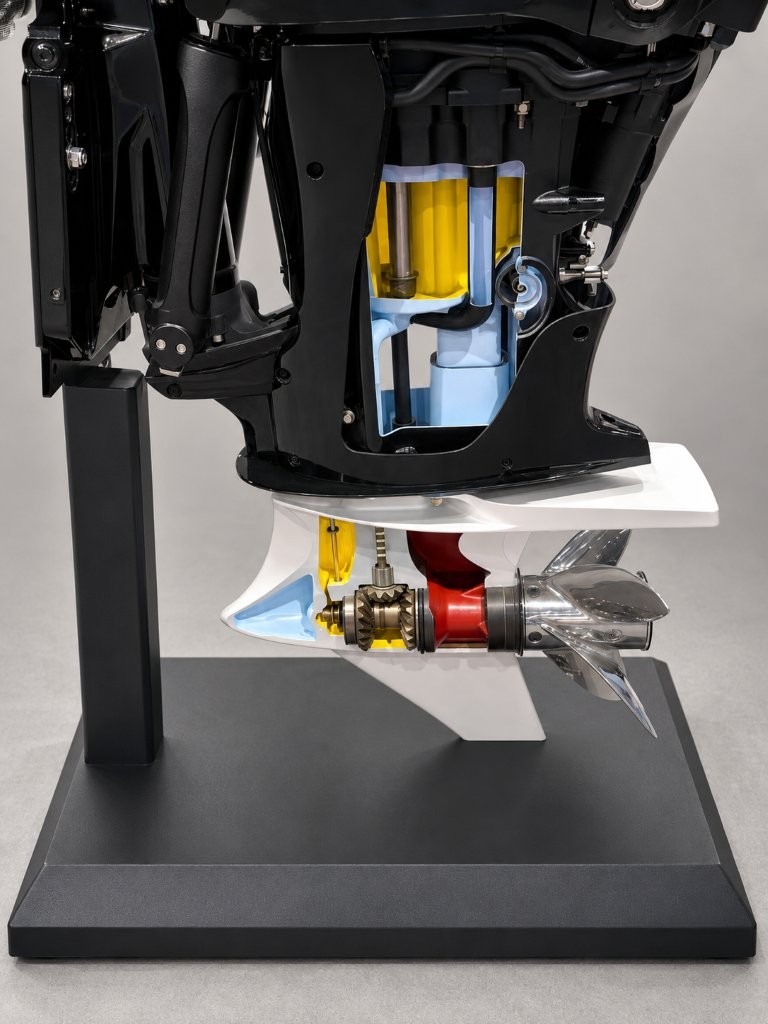

We integrate genuine OEM parts wherever possible so your outboard motor cutaway or complex watercraft cutaway looks, feels, and operates just like the real deal. Our technicians machine away exterior metals and composites using CNC mills and waterjets, finishing internal chambers with contrasting industrial coatings to guide the viewer’s eye. The result is a mechanically accurate, visually striking functional display that highlights your proprietary technology with absolute clarity.

How long does it take to produce a custom marine engine cutaway?

Standard lead times for custom boat cutaway displays typically range from 8 to 12 weeks, depending on the complexity of the engine and availability of donor hardware.

What materials do you use to machine and finish the cutaway sections?

We primarily use aircraft-grade aluminum, high-density plastics, and clear acrylic panels to reinforce exposed sections while keeping the overall assembly structurally sound.

Can these displays be motorized for trade show floors?

Yes, we routinely install low-RPM gearmotors and internal LED lighting packages so moving parts like crankshafts and valves remain visible and active during live demonstrations.

Key Applications for Marine Product Cutaways

• Marine Industry Trade Show Displays: Draw heavy foot traffic at major expos by showcasing your latest hull designs and drivetrain tech in motion.
• Engineering Classrooms and Training Labs: Provide hands-on boat engine training aids that let students inspect internal combustion mechanics and fluid dynamics up close.
• Corporate Showroom Floors: Highlight your brand’s manufacturing quality and R&D milestones with permanent, museum-grade architectural exhibits.
• Dealer Sales Presentations: Equip your sales network with portable, sectioned outboard motor cutaways to explain technical advantages directly to buyers.

Techcom Inc specializes in engineering high-impact Boat Cutaway Displays, precision Marine Engine Cutaways, and custom Outboard Motor Cutaways designed for trade shows, technical training, and corporate showrooms.

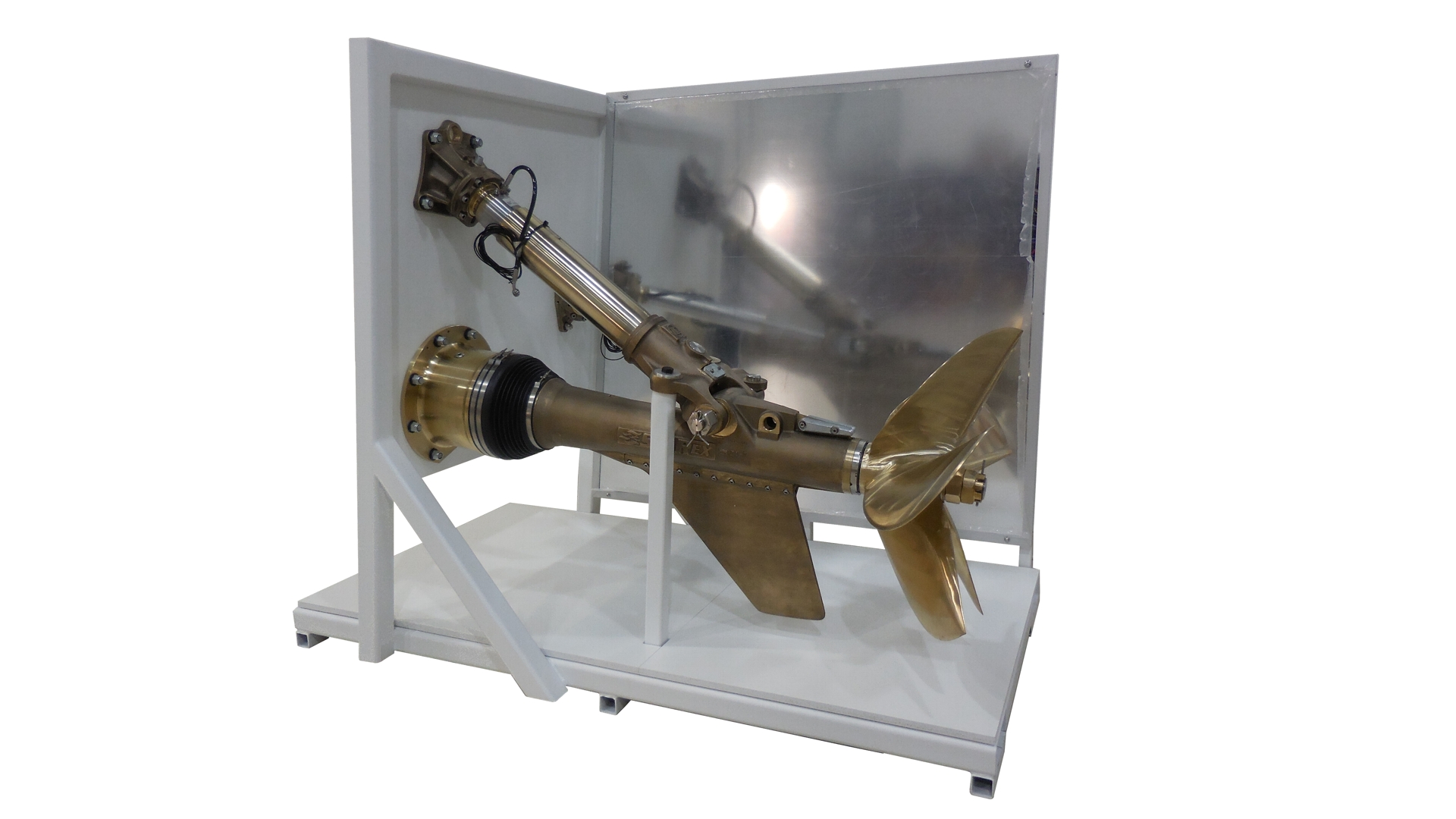

Boat cutaway displays are a visual representation of a manufactured boat, where a portion of the exterior housing or parts have been removed to reveal the internal components (such as the boat engine, fuel system, pumps, bearings, seals, and shafts) and their relationship to the functionality of the marine product.

Cutaways are useful for product training, trade show displays, museum displays, and many other applications. Manufacturers’ product cutaways employ a variety of methods; however, the most effective approach is to utilize a cutaway service company, such as TECHCOM, to ensure a high-quality product.

As advancements are made in computer visualization, 3D modeling, and CAD (Computer-Aided Design) software, which offer an increasing array of features and advantages, cutaway displays will continue to depict products as they exist in reality. They will utilize genuine parts and components to demonstrate how these elements relate and function.

Tell us about your project. Let our team create your next, Boat Engine cutaway, Cutaway outboard boat engine, or Watercraft Cutaways for your next tradeshow or classroom training aid module. On the other hand, boat or engine cutaway is perfect for your marina salesroom floor or marine industry expo! Call TECHCOM today.
